Max. discharge capacity |
80/95 L/min |
|
Max. head |
50/60 m |
|
Main materials |
SCS13, SCS14 |
|
Required power range |
0.2 to 3.7 kW |
|
Discharge bore range |
20 to 40 mm |
|
Liquid temp. range |
0 to 80 C deg. (depending on liquid) |
|
Specific gravity limit |
Approx. 1.3 (Please contact us for details.) |
|
Sealing method |
Seal-less construction |

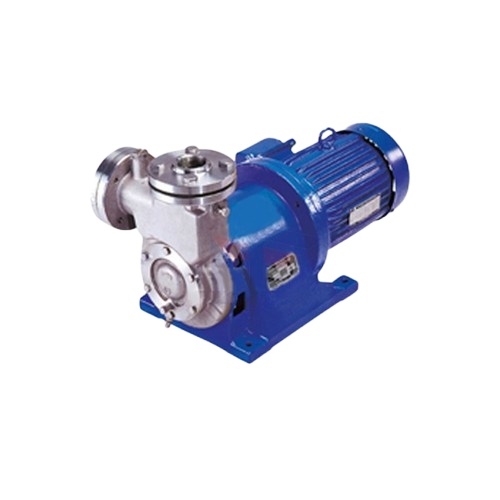

Magnetic Drive Turbine Pump— MDK Series
-
Leakage free, turbine pump
As is common with corrosion resistant pumps, this series uses the magnetic drive method, eliminating all problems caused by liquid leakage. Its pump characteristics include a small flow rate and high head.
Built-in self-priming valve
The inlet side of the pump contains a self-priming valve. Self-priming is actuated quickly after initial priming.
Superior corrosion resistance
The main parts are manufactured from SCS313 or SCS14 stainless cast, allowing the pump to be used for transferring organic solvents and various other chemicals.
