Coding |
Geom. displacement cc/rev |
Operating pressure bar |
Flow (theor.) at |
Mass Weight (kg) |
speed |
Tare-weight torque |
|||
|
500 rpm |
1000 rpm |
1500 rpm |
intermittent nmax |
continuous nnom |
|||||
|
K60N-12 |
12.6 |
400 |
5.8 |
12 |
18.3 |
8.1 |
3000 |
2300 |
6.9 |
|
K60N-17 |
17 |
400 |
7.9 |
16.2 |
24.7 |
8.1 |
3000 |
2300 |
6.9 |
|
K60N-25 |
25.4 |
400 |
12.5 |
25 |
37.5 |
8.1 |
3000 |
2300 |
7.4 |
|
K60N-34 |
34.2 |
400 |
17 |
34 |
51 |
8.1 |
3000 |
2300 |
7.4 |
|
K60N-47 |
47.1 |
400 |
23.5 |
47 |
70.5 |
11.7 |
2500 |
1900 |
13 |
|
K60N-64 |
63.56 |
400 |
31.5 |
63.5 |
95.5 |
11.7 |
2500 |
1900 |
13 |
|
K60N-84 |
83.5 |
400 |
41.5 |
83.5 |
125 |
17 |
2200 |
1600 |
21 |
|
K60N-108 |
108 |
400 |
54 |
108 |
162 |
17 |
2300 |
1600 |
21 |

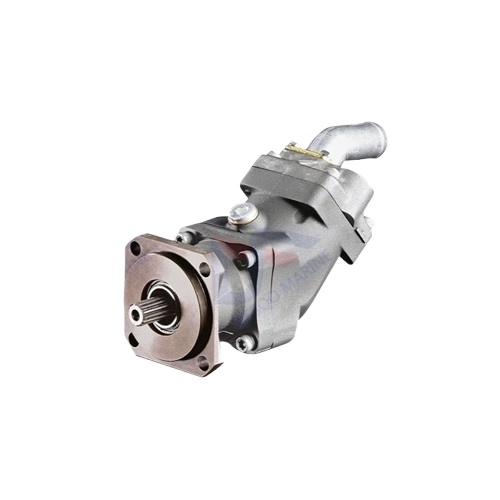

K60N Bent Axial Fixed Piston Pump
-
Application：
TBM, Forestry and agricultural machinery, Cranes and
lifting equipment, Truck mounted concrete pump, Municipal vehicles
Product Features
Fixed displacement axial piston pumps operate according to the bent axis principle. They have a constant output volume and therefore deliver a constant flow rate at a specific rotation speed. The axial piston pump type K60N is designed for open circuits in mobile hydraulics and operates based on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions.
.High speed rating
.Low noise level
.Smooth running and long bearing life
.External fluid leaks are eliminated by using O-rings at all sealing surfaces
.Optional by-pass valve
