Technical standard |
Meet the requirements of GB 4716-2005 |
|
Operating Voltage |
DC18～26V |
|
Monitor current |
≤350μA |
|
Alarm current |
≤1.5mA |
|
Confirmation lamp (red) |
Flash when running, always on when alarm |
|
Line system |
Two alarm buses: T+, T- |
|
Operating temperature |
-10℃～+55℃ |
|
Relative humidity |
≤95% |
|
Dimensions (without base) |
Φ90.5mm、H38 mm |
|
Weight |
About 69g |
|
Color |
White |

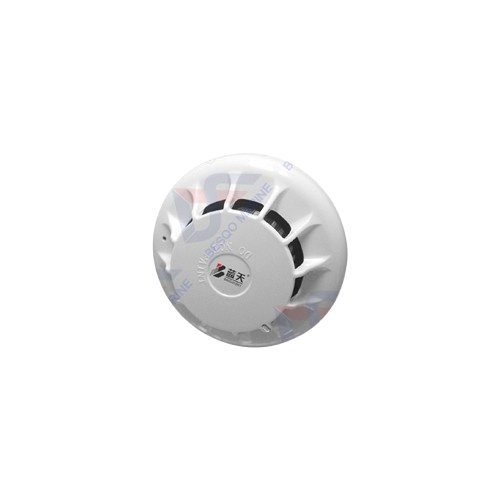

JTW-ZD-501 Point type heat detector
-
Product
Features：Comes with a
CPU to automatically determine the fireTwo-bus
non-polar designElectronic
temperature sensor, high sensitivity, good stabilityUltra-thin
structureUses address
code programmer to write address, no longer use the dial switch
